48V AC/DC 20A Charger & discharger battery connectors

Samples:
price:
Availability:
Quantity:
  • HYT-Charger & discharger L513A

  • Super-ecs

  • SUP-Charger & discharger L513A

Electrical Characteristics
Rated Voltage48V AC/DC
Rated Current20A
Withstand Voltage700VDC
Contact Resistance<10mΩ
Insulation Resistance

>20MΩ

Mechanical Characteristics
Durability

1000 Cycles

Mating and unmating forceScrew locking
Environmental Characteristics
Operating Temperature-25 ℃ ~ 80℃
IP Rating

IP67

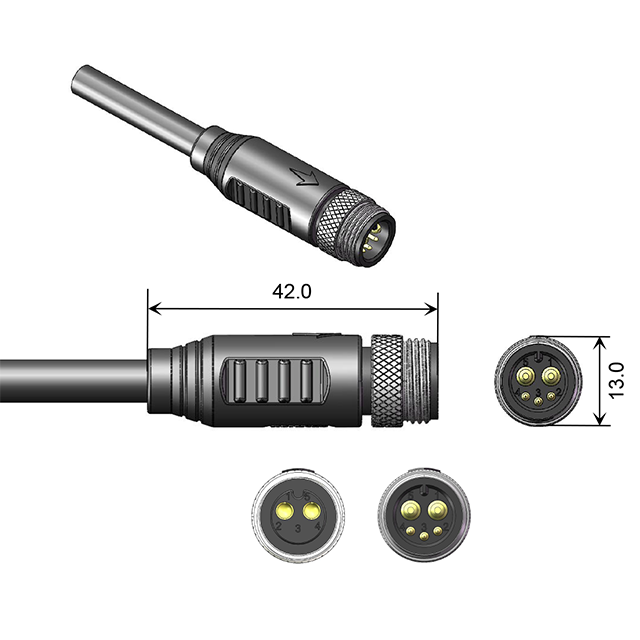

Product Specification
Product Sizeᴓ13.0mm
Mating Length78.0mm
TerminalGold-plated Copper
Wire Specification2.0mm²/0.2mm²
