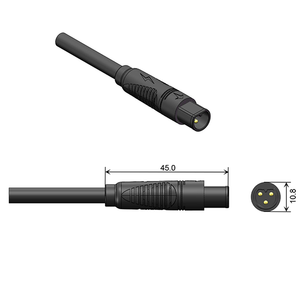

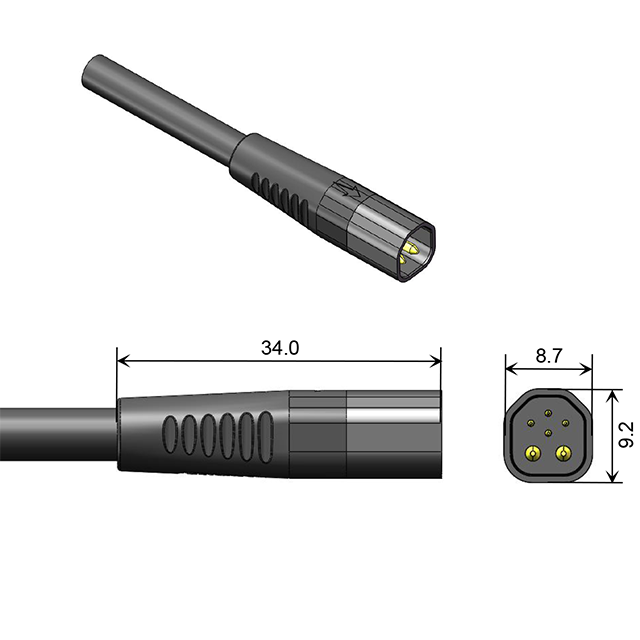

HYT-Charger & discharger Z610B
Super-ecs
SUP-Charger & discharger Z610B
| Electrical Characteristics |
| Rated Voltage | 48V AC/DC |
| Rated Current | 15A |
| Withstand Voltage | 700VDC |
| Contact Resistance | <10mΩ |
| Insulation Resistance | >20MΩ |
| Mechanical Characteristics |
| Durability | 1000 Cycles |
| Mating and unmating force | 20N ~ 50N |
| Environmental Characteristics |
| Operating Temperature | -25 ℃ ~ 80℃ |
| IP Rating | IP66 |
| Product Specification |

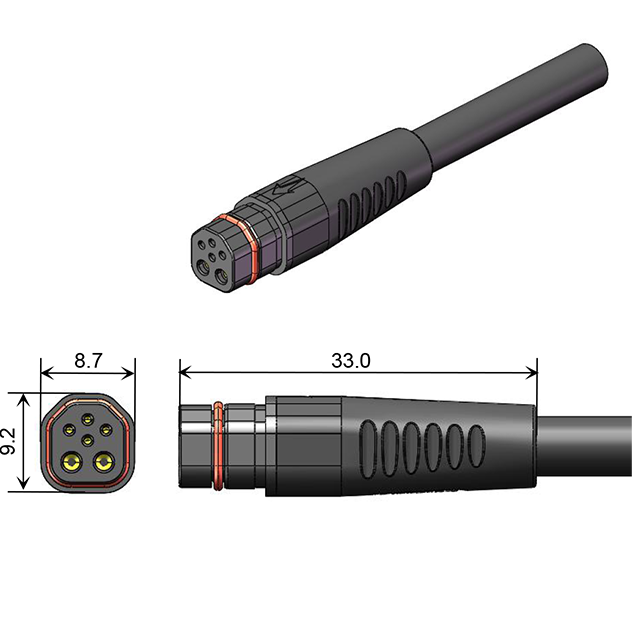

| Product Size | ᴓ9.2mm |
| Mating Length | 59.0mm |
| Terminal | Gold-plated Copper |
| Wire Specification | 1.5mm²/0.2mm² |
