SSE-156
Super-ecs
SUP-SSE-156
| Informations |
Battery can be equipped with Samsung cell,LG cell,Panasonic cell or High power Chinese 21700 cell;
Battery can be customized as your requirements;
OEM/ODM orders are welcomed;
| Battery Technical Data |
| Max cell space | 21700 30 pcs |
| Configration | 10S3P |
| Material | Aluminun 6061 / PC+ABS |
| Charging port | DC2.1 port |
| Discharging port | Self-made 5pin |
| Lock | Mechanical lock |
| Capacity indicator | 5 lever LED capacity indicator |
| Working temperature | 0~45℃（charge）；-20~60℃（discharge） |
| Warranty | 1 Year |
| Weight | Subject to the real object |

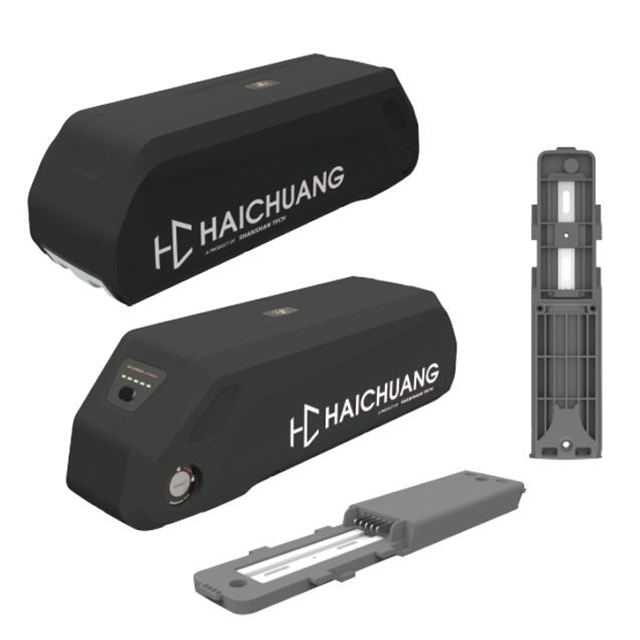

| Product Photos |
| Lithium Battery Features |
Safety: safest Li-Ion battery, CE ROHS approved, built in PCM/PCB, none fire or explosive;
Clean and Green energy, no toxic material contained;
Long life cycle, 80% capacity remain after 500 times deep cycle;
No memory effect,highly efficient charge anytime, no reduction of capacity;
Operation temperature: -20~60°C;
Small size, light weight;
Good performance at high temperature and high temperature resistance;
Low self-discharge rate: < 3% monthly;
Lithium cylindrical rechargeable batteries with PCB protection；
Internal PCB protection (patent pending design) protect battery from over charge,over discharge,over current and short circuit;
Manufactured under CE,ROHS to assure quality;
Battery tested before delivery to ensure capacity, quality and lifetime;
Pollution-Free/Long Cycle Life/Good Consistency;
No memory effect ;
Large manufacturers, short delivery time, price advantage;
| Vibration Test | After standard charging, put battery on the vibration table. 30min experiment from X, Y, Z axis. Scan rate: 1oct/min; Frequency10-30Hz, Swing 0.38mm; Frequency 30-55Hz, Swing 0.19mm. | no influence to batteries electrical performance and appearance. |
| Informations |
Battery can be equipped with Samsung cell,LG cell,Panasonic cell or High power Chinese 21700 cell;
Battery can be customized as your requirements;
OEM/ODM orders are welcomed;
| Battery Technical Data |
| Max cell space | 21700 30 pcs |
| Configration | 10S3P |
| Material | Aluminun 6061 / PC+ABS |
| Charging port | DC2.1 port |
| Discharging port | Self-made 5pin |
| Lock | Mechanical lock |
| Capacity indicator | 5 lever LED capacity indicator |
| Working temperature | 0~45℃（charge）；-20~60℃（discharge） |
| Warranty | 1 Year |
| Weight | Subject to the real object |
| Product Photos |
| Lithium Battery Features |
Safety: safest Li-Ion battery, CE ROHS approved, built in PCM/PCB, none fire or explosive;
Clean and Green energy, no toxic material contained;
Long life cycle, 80% capacity remain after 500 times deep cycle;
No memory effect,highly efficient charge anytime, no reduction of capacity;
Operation temperature: -20~60°C;
Small size, light weight;
Good performance at high temperature and high temperature resistance;
Low self-discharge rate: < 3% monthly;
Lithium cylindrical rechargeable batteries with PCB protection；
Internal PCB protection (patent pending design) protect battery from over charge,over discharge,over current and short circuit;
Manufactured under CE,ROHS to assure quality;
Battery tested before delivery to ensure capacity, quality and lifetime;
Pollution-Free/Long Cycle Life/Good Consistency;
No memory effect ;
Large manufacturers, short delivery time, price advantage;
| Vibration Test | After standard charging, put battery on the vibration table. 30min experiment from X, Y, Z axis. Scan rate: 1oct/min; Frequency10-30Hz, Swing 0.38mm; Frequency 30-55Hz, Swing 0.19mm. | no influence to batteries electrical performance and appearance. |
