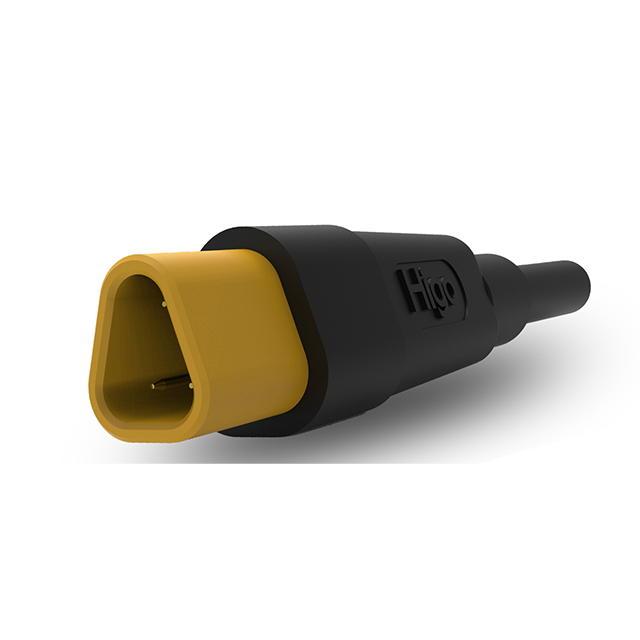

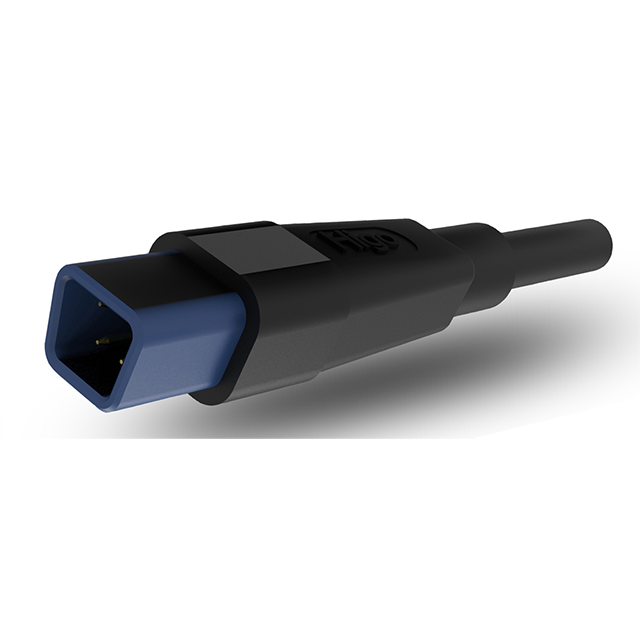

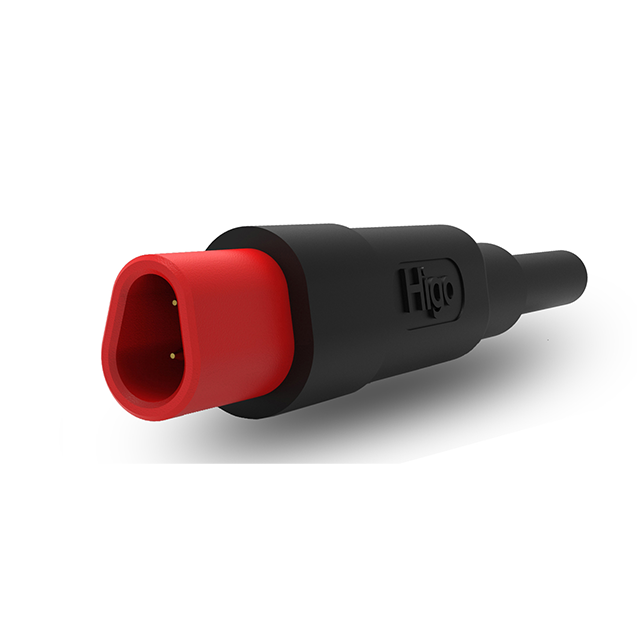

F.S-Z*09F
Super-ecs
SUP-F.S-Z*09F
| Product Introduction |
| scope of application | The electric bike, Scooter，motorcycle, industry；The LED industry and so on. |

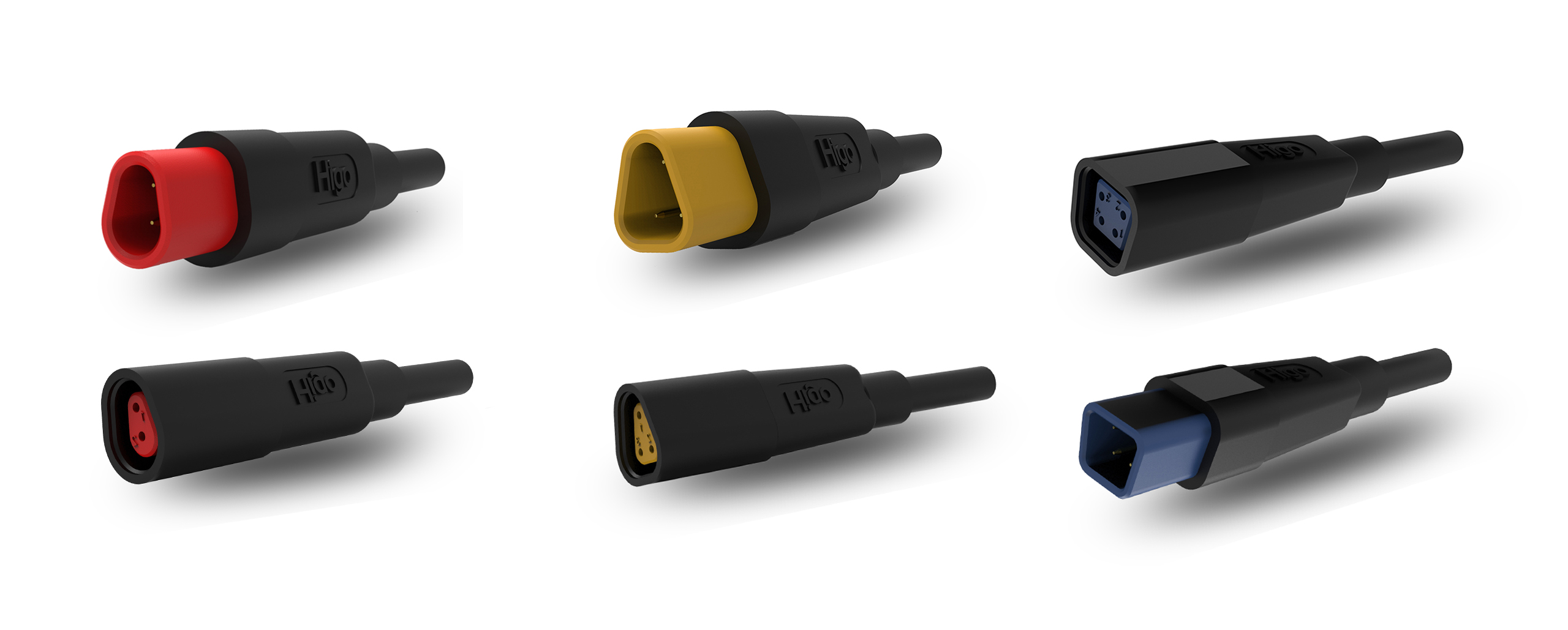

| Types | waterproof plug/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug |
| Interface type | AC/DC |
| Use wire gauge | 0.14mm²/ 0.20mm² |
| Feature | waterproof |
| Joint material | PVC/PBT/PA66 / PC + ABS |
| Contact material | pure phosphor copper |

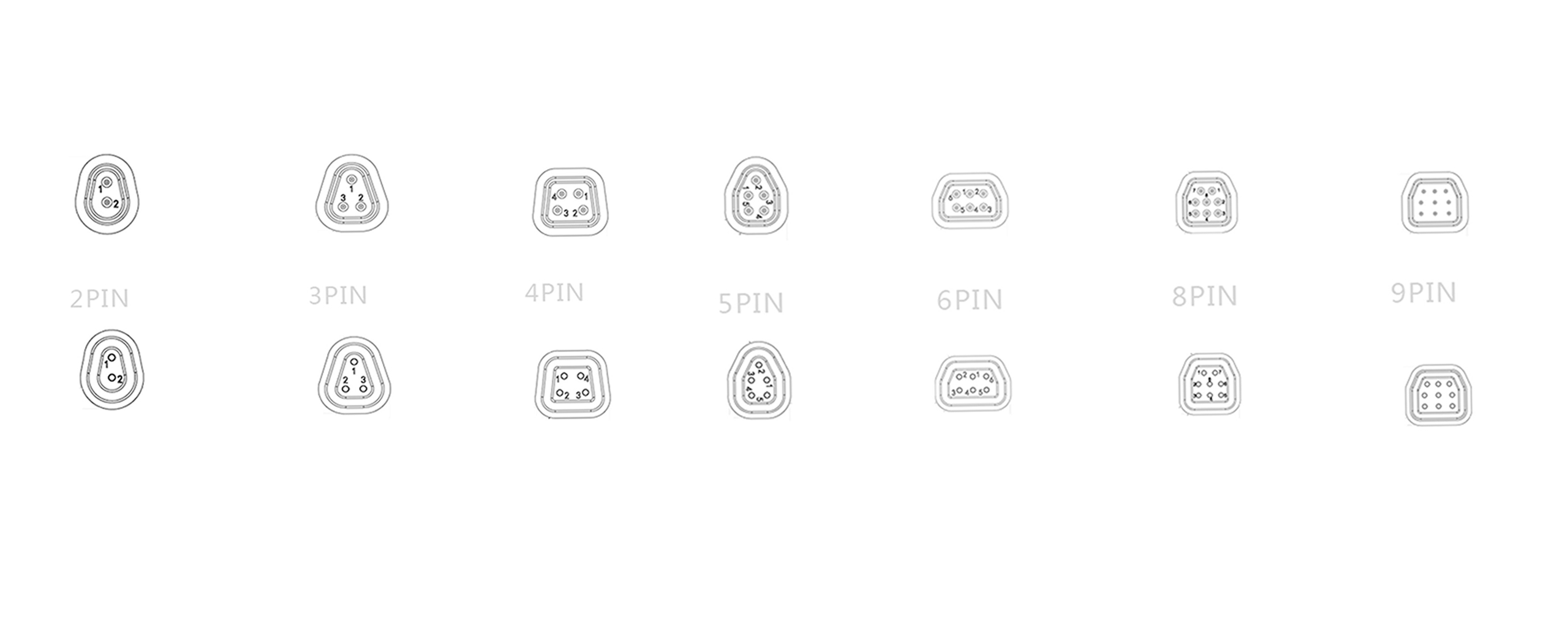

| Pin number | 2.3.4.5.6.7.8.9needle |
| Rated voltage | 48V AC/DC |
| Rated current | 2A |
| Withstand voltage | 500V(special require should be mentioned in advance) |
| Working temperature | -25℃~+80℃ |
| Protection grade | IP67 |
| Insulation resistance | ≥20MΩ |
| Contact resistance | ≤10mΩ |
| Certification | can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire |
| Cable length | 55mm（any long can be customized for customer request） |
| outer diameter | 9mm |
| Plug force/plug method | Insertion force 80N Max, pull out force 30N Min |
