36V 48V 250W 500W electric bicycle Brushless inner gear drive rear hub motor for E-TOUR E-MTB E-CARGO kit

Color:
Black
Silver
Samples:
≥1pcs
price:
Depend on quantity
Availability:
Quantity:
Inquire Add to Basket

  • AKM128SX (R1)

  • Super-ecs

  • SUP-AKM128SX (R1)

Product parameters

2

Bike Recommendation E-TOUR/E-MTB/E-CARGO Efficiency(%) ≥80

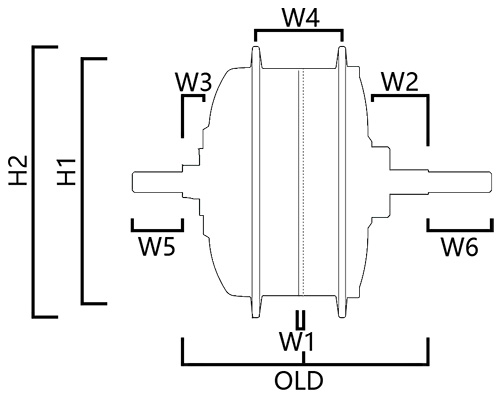

Size : H1 / H2 129mm / 144mm Weight (kg) 2.8
W1 / W2 6.8mm / 40.5mm Speed(km) 32/40
W3 / W4 15mm / 44mm Noise Grade (dB) ＜55
W5 / W6 34.5mm / 26.5mm Operating Temperature -20℃~45℃
Installation Widths (mm/OLD) 135mm Cabling Route Optional
Rated Power 350W/500W Spoke Parameter 36H*13G (Optional)
Rated Voltage(DCV) 36V/48V Line Way Left
Wheel Size(Inch) 20"~28" IP Level 65
Max Torque(N.m) 60 Certification CE/RoHS/EN 15194
