20-28" Wheel Rear motor 175mm 60n.m Max Torque Electric Bicycle 24V 36V 48V 250w 350w Brushless inner gear drive Hub Motor for fat tire ebike kit

Color:
Samples:
price:
Availability:
Quantity:
  • AKM100SX ( R2 / RC2)

  • Super-ecs

  • SUP-AKM100SX ( R2 / RC2)

Product parameters

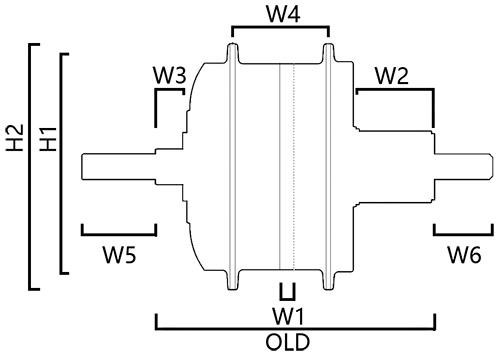

尺寸1尺寸2

Bike Recommendation E-FAT Efficiency(%) ≥80
Size : H1 / H2 109mm / 125mm Weight (kg) 2.7
W1 / W2 0.8mm / 41mm Speed(km) 35
W3 / W4 15.2mm / 70mm Noise Grade (dB) <55
W5 / W6 25mm / 25mm Operating Temperature -20℃~45℃
Installation Widths (mm/OLD) 175mm Cabling Route Optional
Rated Power 250W Spoke Parameter 36H*13G (Optional)
Rated Voltage(DCV) 24V/36V/48V Line Way Left
Wheel Size(Inch) 20"~28" IP Level 65
Max Torque(N.m) 60 Certification CE/RoHS/EN 15194
